Video-enabled Double-lumen Endotracheal Intubation ISO13485 Certified

Video-enabled Double-lumen Endotracheal Intubation ISO13485 Certified

Marchio:	MCREAT
Numero di modello:	MC-09KL28Z
MOQ:	500
prezzo:	USD 11.5-15.5/PC
Condizioni di pagamento:	MoneyGram, Western Union, T/T.
Capacità di approvvigionamento:	200000pcs/mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE/FDA/ISO

Mancia:

blu morbido

Classificazione:

Classe II

Applicazione:

Endotracheale

Metodo di sterilizzazione:

Ossido di etilene

ODM:

SÌ

OEM:

SÌ

Stampa del logo:

con o senza stampa del logo

Materiale:

PVC di qualità medica

Imballaggi particolari:

1 pezzo per sacchetto sterilizzato, 10 pezzi per scatola interna, imballaggio esterno: 100 pezzi

Capacità di alimentazione:

200000pcs/mese

Descrizione del prodotto

Video-enabled double-lumen endotracheal intubation ISO13485 certified

Product Introduction

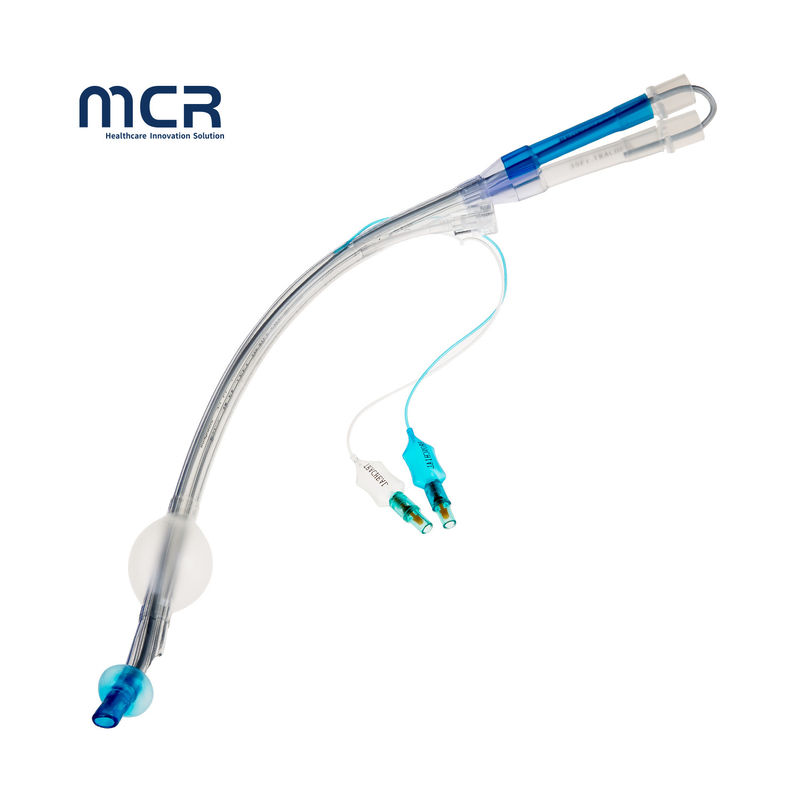

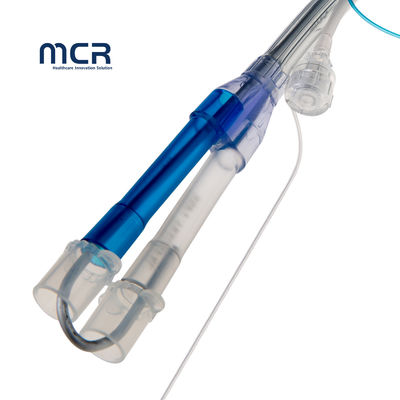

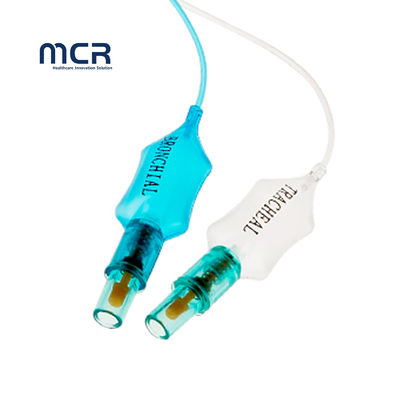

The double-lumen endobronchial tube is an airway management device designed specifically for thoracic surgery, achieving single-lung ventilation through a unique sub-lumen structure. The main body of the product is made of medical-grade PVC material and contains two independent channels, the bronchial cavity and the tracheal cavity, with blue and transparent connectors for easy identification. The front end of the catheter is anatomically curved and equipped with a high-definition video channel (1.2mm diameter), which can be connected to an endoscope for real-time visual positioning. The airbag adopts a low-pressure and high-volume design, and the injection pressure does not exceed 25cmH₂O, reducing the risk of airway mucosal damage. The product complies with the ISO13485 quality management system and has obtained CE and FDA certification. It is suitable for thoracoscopic surgery, lobectomy and other precision operations that require lung isolation.

Parameter table/selection table

Size(FR)	CODE
Size(FR)	Left	Right
28	MC-09KL28	MC-09KR28
32	MC-09KL32	MC-09KR32
35	MC-09KL35	MC-09KR35
37	MC-09KL37	MC-09KR37
39	MC-09KL39	MC-09KR39
41	MC-09KL41	MC-09KR41

Advantages

Compared with traditional double-lumen tubes, the video channel design increases the first-time intubation success rate by 40% and reduces the average positioning time by 50%. Medical-grade PU material increases the flexibility of the catheter by 30%, reducing the risk of airway injury. The integrated design prevents additional instruments from entering the airway, reducing the chance of contamination. The low-pressure design of the airbag reduces the incidence of mucosal compression injury to 0.5%. The radiopaque marker reduces the X-ray positioning error to less than 1mm. The product has passed the biocompatibility test and the cytotoxic reaction is level 0. In terms of cost-effectiveness, the single-use design avoids the risk of cross-infection and reduces the cost of cleaning and disinfection. A full range of specifications can meet the needs of all age groups from children to adults.

Serve

The manufacturer provides comprehensive technical support: technical inquiries are responded to within 24 hours, and free sample trials are available. Customized services include corporate logo printing and custom specifications (length/diameter/curvature adjustment).

Logistics support is guaranteed, with 48-hour delivery for urgent orders, and temperature and humidity monitoring throughout transportation. After-sales service includes clinical training videos and online guidance from dedicated clinical engineers.

Product quality commitment: third-party test reports are provided, and unconditional returns and exchanges are available for quality issues.

Customer usage records are established, with product expiration reminders three months in advance. Customized intubation carts are provided for large hospitals, integrating related equipment to improve operational efficiency.

FAQ

Q: What is the maximum usage time of the catheter?

A: It is recommended not to exceed 72 hours. Long-term use requires monitoring of the cuff pressure.

Q: Is it compatible with all bronchoscopes?

A: It is compatible with electronic bronchoscopes and fiberscopes with a diameter of ≤1.8mm.

Q: How to deal with difficult airway?

A: It is recommended to use the tube stylet to shape the tube before intubation, and the video channel to assist in confirming the position.

Q: How often should the cuff pressure be monitored?

A: It is recommended to monitor it every 4 hours and maintain a pressure between 25-30 cmH₂O.

Q: Is it suitable for pediatric patients?

A: The 28FR specification is suitable for children weighing more than 25 kg.

Q: What should I do if my blood oxygen level drops after tube placement?

A: Immediately check the tube position and confirm whether the non-ventilated lung is completely collapsed.

Q: How to confirm the correct position?

A: It is recommended to combine auscultation, fiberoptic bronchoscopy and end-tidal CO₂ monitoring to make a comprehensive judgment.
